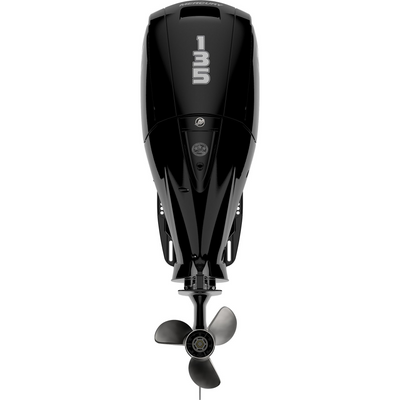

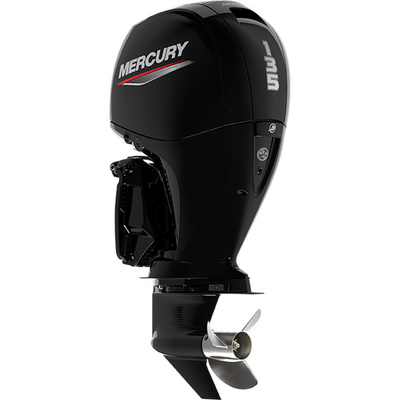

    FourStroke 135 Mercury Outboard

    Mercury

    Please click to contact us if you are interested in this product.

    Delivers the ultimate in compact versatility. Great for aluminum console, bass, offshore fishing, inflatable rigid hull (RIB), fish & ski, and runabout boats, pontoons and tritoons.

    SPECIFICATIONS - 135

    HP / kW
    • 135 / 101
    Engine type
    • 8-valve single overhead cam (SOHC)
    • Inline 4
    Displacement (L)
    • 3.0
    Full throttle RPM
    • 4800-5300
    Air induction
    • Performance-Tuned Scroll Intake Manifold
    Fuel induction system
    • Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
    Alternator amp / Watt
    • 60 amp / 756 watt (Belt-Driven)
    Recommended fuel
    • Unleaded 91 RON Minimum
    Recommended oil
    • Mercury FourStroke Oil 10W-30
    Engine protection operator warning system
    • SmartCraft Engine Guardian
    Compatible with SmartCraft digital technology
    • Yes
    Starting
    • Electric (turn-key)
    • Smart Start Electric
    Controls
    • Mechanical throttle & shift
    Steering
    • Big Tiller Compatible
    • Dual cable mechanical
    • Electro-Hydraulic Power Steering Optional on Duals
    • Hydraulic power steering
    Shaft length
    • 20" / 508 mm
    • 25" / 635 mm
    Gearcase ratio
    • 1.92:1
    Dry weight *Lightest model available
    • 455 lbs / 206 kg
    Emissions Star Rating
    • 3
    Bore and stroke
    • 4.0 x 3.6" / 102 x 92 mm
    Ignition
    • SmartCraft ECM 70 Digital Inductive
    Fuel system
    • Electronic Fuel Injection (EFI)
    Cooling system
    • Water-cooled with thermostat
    Gear shift
    • F-N-R
    Gearcase options
    • Standard
    Trim system
    • Power Tilt
    • Power Trim
    Exhaust system
    • Through prop
    Counter Rotation
    • Available
    Color
    • Phantom Black
    Lubrication system
    • Wet sump
    Oil Capacity
    • 6.3 qts / 6.0l
    Maximum Trim Range
    • 22° (-6° to 16°)
    Maximum Tilt Range
    • 73° (-6° to 67°)
